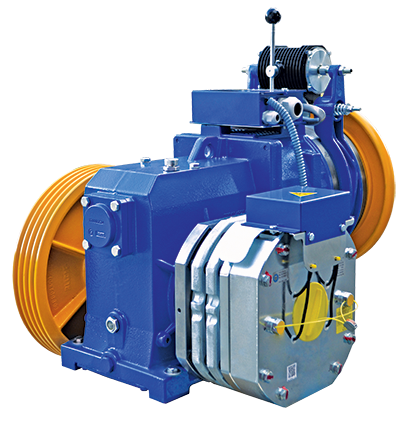

Sassi S38 (S) gearbox
The S38 (without outboard Bearing) and the S38S (with outboard bearing) are both available.
Extremely versatile gearbox with large application range.
S-38:
Static load max [kg]: 3000
Ratio: 1/71 – 1/55 – 1/45 – 2/57
Duty load [kg]: 630 kg roping 1/1, 1000 kg roping 2/1
Roping: 1/1 - 2/1
Traction pulley speed [m/sec]: 0,22 – 4,20
Speed control: 4/16 - VF
Powers range 4/16[kW SYNC]: 4,0 - 5,5
Powers range VF [kW SYNC]: 3,3 - 7,3
Moment of inertia J with VF motor: Kgm2 0,010
Lubricated for life
S38-S:
Static load max [kg]: 3300
Ratio: 1/71 – 1/55 – 1/45 – 2/57
Duty load [kg]: 630 kg roping 1/1, 1000 kg roping 2/1
Roping: 1/1 - 2/1
Traction pulley speed [m/sec]: 0,22 – 4,20
Speed control: 4/16 - VF
Powers range 4/16[kW SYNC]: 4,0 - 5,5
Powers range VF [kW SYNC]: 3,3 - 7,3
Moment of inertia J with VF motor: Kgm2 0,010
Lubricated for life
